HPM-100
- 儀器響應函數（IRF）降至20 ps FWHM
- 過載保護
- 大探測區域：3毫米或6毫米光陰極直徑
- 覆蓋180 nm至920 nm的五種陰極類型
- 無后脈沖效應
- 通過DCC-100模塊進行電源控制
- 干凈的IRF：無尾巴或次峰
- 用于PMT工作電壓的內部高壓
- TCSPC測量的高動態范圍
- 直接連接到所有bh TCSPC系統
- 具有降低的暗計數水平的制冷型版本
HPM-100產品參數
|

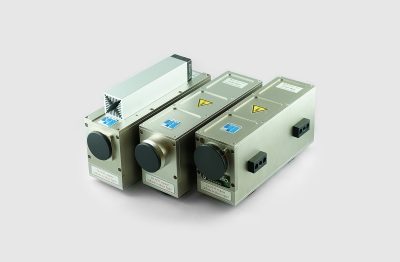

HPM-100混合型單光子探測器
|
|||||
|
型號
|
HPM-100-06
|
HPM-100-07
|
HPM-100-40
|
HPM-100-42
|
HPM-100-50
|
|
陰極類型
|
-06
|
-07
|
-40
|
-42
|
-50
|
|
波長范圍/ nm 1）
|
220-650
|
220-850
|
250-720
|
300-850
|
400-900
|
|
探測器量子效率1）
|
28％
@ 400納米
|
26％
@ 290納米，18％
@ 400納米
|
45％
@ 500納米
|
22％
@ 500納米
|
20％
@ 600納米
|
|
光譜靈敏度：單擊此處
|
|||||
|
暗計數率（典型值）/ s -1，T 情況 = 22°C
|
15
|
<300
|
400
|
470
|
1100
|
|
主動冷卻的HPM的暗計數率（典型值）/ s -1，T 情況 = 30°C
|
<15
|
<150
|
80
|
320
|
350
|
|
渡越時間
（TCSPC IRF / FWHM，典型值）
|
<20 ps
|
120 ps
|
150 ps
|
170 ps
|
|
|
理想 計數率（連續）
|
> 10 MHz
|
||||
|
單電子響應寬度（FWHM，典型值）
|
850 ps
|
||||
|
單電子響應幅度（V apd為V max的 95％）2）
|
50毫伏
|
||||
|
過載關機
|
> 15 MHz（根據要求提供更高的速率）
|
||||
|
信號輸出
|
|||||
|
輸出極性
|
負
|
||||
|
輸出接頭
|
SMA
|
||||
|
輸出阻抗
|
50Ω
|
||||
|
電源
|
|||||
|
（來自DCC-100卡）
|
+12 V，+ 5 V，-12 V
|
||||
|
通用信息
|
|||||
|
陰極直徑
|
6毫米
|
3毫米
|
3毫米
|
3毫米
|
3毫米
|
|
尺寸（寬x高x長）
|
（60 x 90 x 170）毫米
|
||||
|
光學適配器
|
C-Mount接口，DCS-120，LSM 710/780/880 NDD和BIG端口
|
||||
|
所有HPM-100檢測器均提供冷卻版本
|
|||||
（1）符合Hamamatsu規范
（2）隨陰極類型和制造批次而異
